| Manufacturer | Schneider Electric |

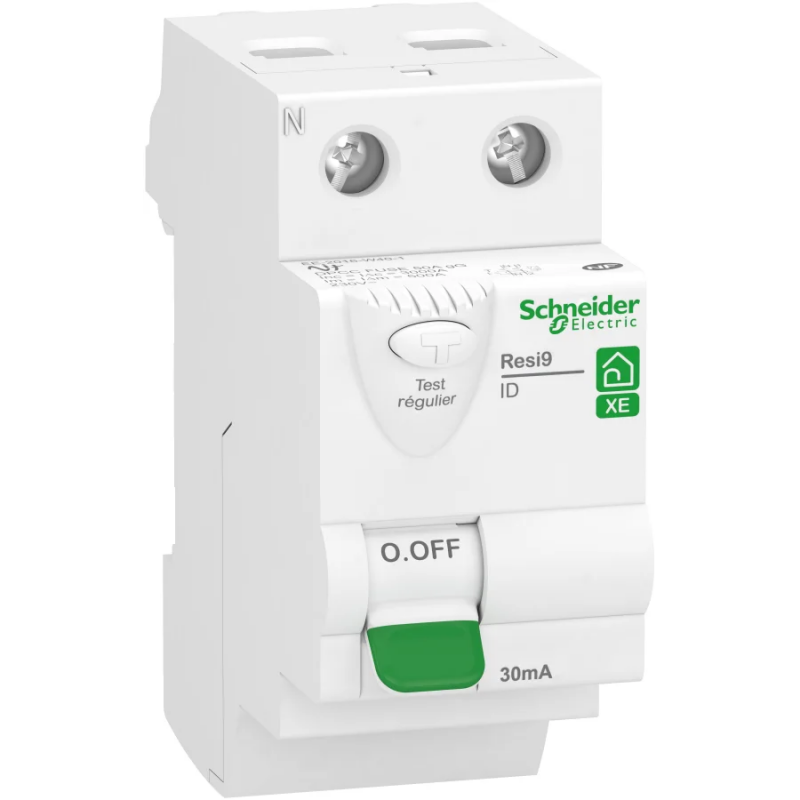

| Reference | R9ERC225 |
| EAN | 3606481273994 |
| Customs code | 85363030 |
| Product line | Resi9 xe |
| Short-circuit resistance (Icw) | 3 kA |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 2.0 |
| Embedding depth | 44.0 mm |
| Calibre | 25.0 A |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2.0 |
| RAL number | 9003.0 |
| Section of connection cable rigid | 1,0 .. 35,0 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -5,0 .. 40,0 °C |
| Tension | 230.0 V |
| Rated impulse withstand voltage (Uimp) | 4.0 kV |
| Rated insulation voltage (Ui) | 440.0 V |
| Shock current resistance | 0.25 kA |
| Type of installation | DIN rail |
