• -41%

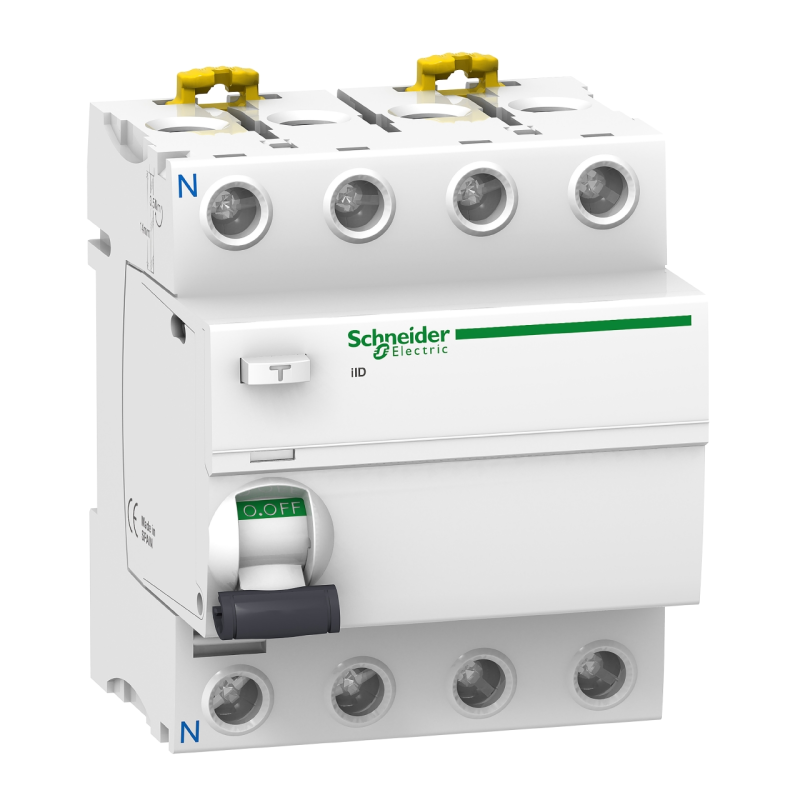

Differential switch iID Tétra Acti9 - 80A 100mA - type AC

A9R12480
3606480089381
Product line: Acti9, Protection class (IP): IP20
€697.28
€411.40 Save 41%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Differential switch iID Tétra Acti9 - 80A 100mA - type AC - A9R12480

Differential switch iID Tétra Acti9 - 80A 100mA - type AC
Protection class (IP)
IP20

main features - Schneider Electric A9R12480

  • Product line: Acti9
  • Protection class (IP): IP20
  • reference: Schneider Electric A9R12480 / EAN: 3606480089381
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9R12480
EAN3606480089381
Customs code85362090
Product lineActi9
Electrical information
Short-circuit resistance (Icw)10 kA
Type of differential currentAC
Type of voltageAC
Dimensions and weight
Width in number of modules4.0
Embedding depth44.0 mm
Size (according to DIN 43880)4
Technical specifications
Calibre80.0 A
Degree of pollution3
Frequency50/60Hz
Protection class (IP)IP20
Number of poles4.0
Auxiliary products that can be combinedYes
Section of connection cable rigid1,0 .. 35,0 mm²
Sensitivity0.1 A
Ambient temperature in operation-5,0 .. 60,0 °C
Tension415.0 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated insulation voltage (Ui)500.0 V
Shock current resistance0.25 kA
Type of installationDIN rail
