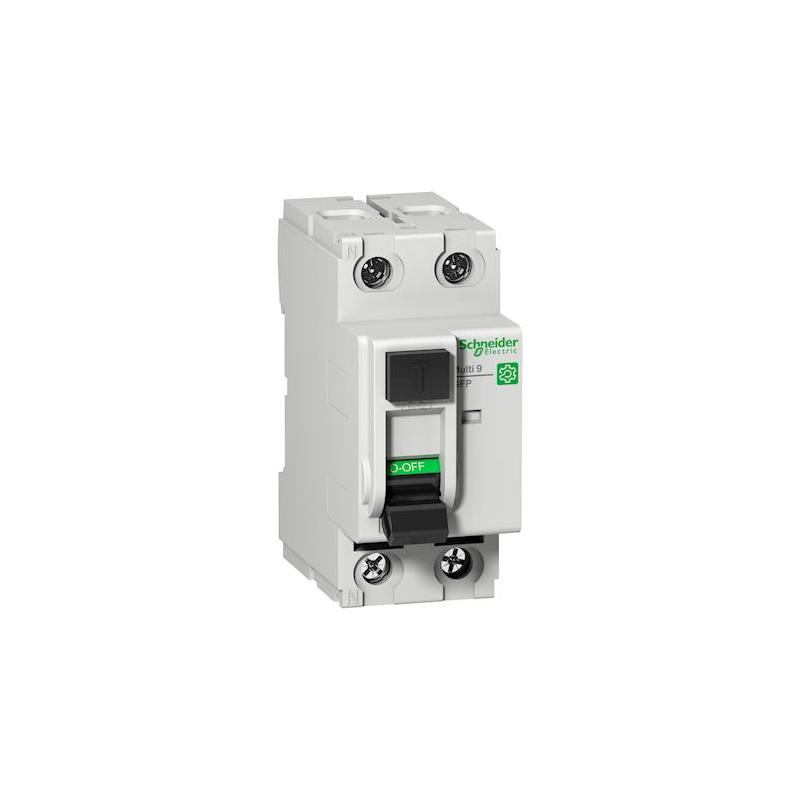

Multi9 - differential switch GFP - 2P - 25A 26mA - type Asi - 120-240V

M9R81225
3606481198419
Product line: Multi9, Protection class (IP): IP20
€275.75
Tax included Logistics platform stock: 2 (+ on order) - Delivery within 9 working days in Europe - Price for 1u.
Quantity
In stock (2 u)

100% secure payments
Close
Description

Multi9 - differential switch GFP - 2P - 25A 26mA - type Asi - 120-240V - M9R81225

Multi9 - differential switch GFP - 2P - 25A 26mA - type Asi - 120-240V
Protection class (IP)
IP20

main features - Schneider Electric M9R81225

  • Product line: Multi9
  • Protection class (IP): IP20
  • reference: Schneider Electric M9R81225 / EAN: 3606481198419
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceM9R81225
EAN3606481198419
Customs code85363030
Product lineMulti9
Electrical information
Short-circuit resistance (Icw)1.5 kA
Type of differential currentA
Type of voltageAC
Dimensions and weight
Width in number of modules2.0
Embedding depth44.0 mm
Technical specifications
With locking deviceYes
Calibre25.0 A
Frequency50/60Hz
Protection class (IP)IP20
Number of poles2.0
Section of connection cable rigid1,0 .. 35,0 mm²
SelectiveYes
Sensitivity0.026 A
Ambient temperature in operation-25,0 .. 60,0 °C
Tension240.0 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated insulation voltage (Ui)440.0 V
Shock current resistance10.0 kA
Type of installationDIN rail
