| Manufacturer | Ledvance |
| Reference | 017643 |
| EAN | 4099854017643 |
| Customs code | 94051190 |
| Product line | Value |
| Case color | White |
| Finishing of the louver | Ultra glossy |
| Material | Steel |
| Color of light | White |
| Color rendering index (CRI) | 80 .. 89 |
| Class electric | II |
| Nominal voltage | 220...240 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for flush mounting | Yes |
| Height/depth | 34 mm |
| Installation height/depth | 50 mm |
| Width | 595 mm |
| Installation width | 575 mm |
| Length | 1195 mm |
| Embedding length | 1175 mm |
| Suitable for pendant lights | Yes |
| Integrated emergency power supply | No |
| Exchangeable control unit | Yes |
| Equipment supplied | Yes |
| With sensor of light | No |
| IFTTT compatible | Yes |
| Start of phase break | No |
| End of phase break | No |
| Rated life L70/B50 at 25°C | 70000 h |
| Luminaire efficiency | 110 lm/W |
| Light distribution element | Diffuser |
| Light emission | Direct |
| Glare assessment (UGR) | 19 |
| Power factor (cos phi) | 0.9 |
| Effective luminous flux | 5830 lm |
| Photobiological risk group according to EN 62471 | GR0 |
| Protection class (IP) | IP40 |
| Protection class against impacts (IK) | IK02 |
| Number of poles | 2 |
| Max. number of luminaires per circuit breaker B16 | 55 |
| Max. number of luminaires per circuit breaker C16 | 55 |
| Fire protection "D" | No |
| System power | 53 W |
| Light source included | Yes |
| Light source included | Yes |
| Nominal room temperature according to IEC 62722-2-1 | -10 .. +45 °C |
| Color temperature | 4000 K |
| Glow-wire test according to IEC 60695-2-11 | 650 °C - 30 s |
| Type | LED not interchangeable |
| Type of wiring | Suitable for through-wiring |
| Type of connection | Automatic bollard |
| Type of connection | File terminal |
| Color uniformity (mcAdam ellipse) | SDCM5 |
| Control via bluetooth | No |
| Possible IFTTT support | Yes |
Reference: P2C19X60WA

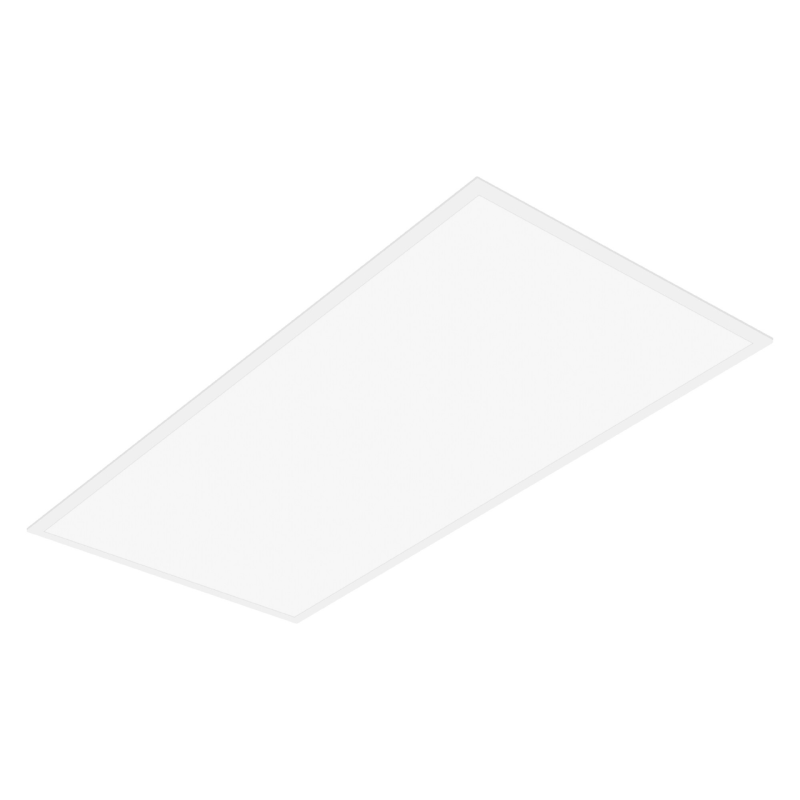

Panel 1200x600 60W 4000K 6900lm UGR19 without power supply IP40 IRC sup 80 beam 90D
