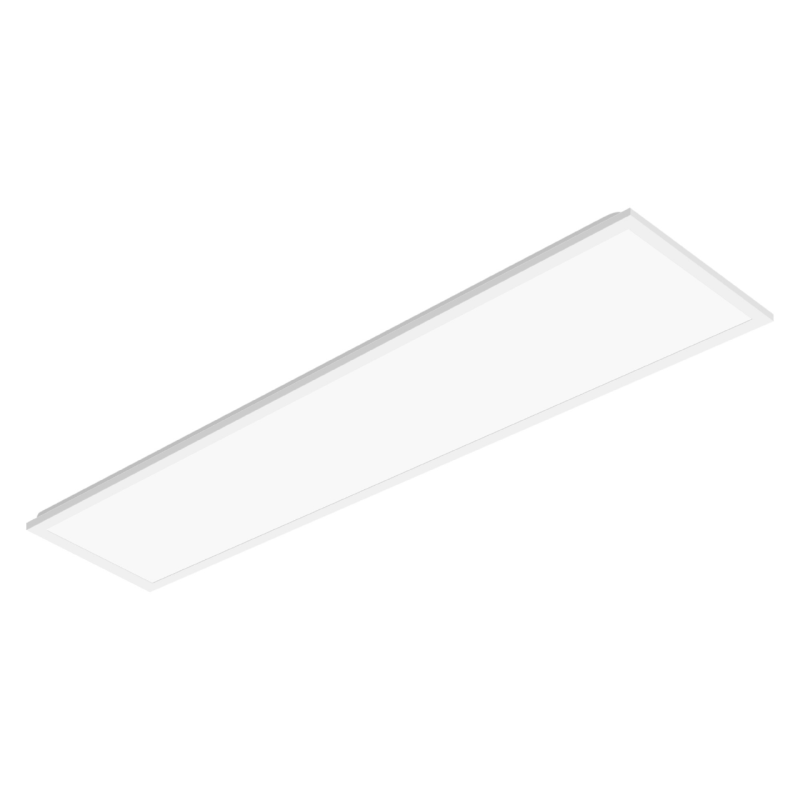

LED panel Compact 1200x300 33W/4000K 3630lm UGR19 DALI TouchDim IP40 110lm/W 90°

017247
4099854017247
Product line: Value, Protection class (IP): IP40, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€188.10
€150.48 Save 20%
Tax included Stock: 53 (+ on order) - Delivery within 10 working days in Europe - Price for 1u.
Quantity
In stock (53 u)

100% secure payments
Close
Description

LED panel Compact 1200x300 33W/4000K 3630lm UGR19 DALI TouchDim IP40 110lm/W 90° - 017247

LED panel Compact 1200x300 33W/4000K 3630lm UGR19 DALI TouchDim IP40 110lm/W 90°
Color temperature
4000K
Protection class (IP)
IP40
Class electric
class II
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
19

main features - Ledvance 017247

  • Product line: Value
  • Protection class (IP): IP40
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Ledvance 017247 / EAN: 4099854017247
Ledvance
Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerLedvance
Reference017247
EAN4099854017247
Customs code94051190
Product lineValue
Design and finish
Case colorWhite
MaterialSteel
Light information
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220...240 V
Type of voltageAC/DC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for flush mountingYes
Dimensions and weight
Height/depth34 mm
Installation height/depth50 mm
Width295 mm
Installation width290 mm
Length1195 mm
Embedding length1190 mm
Technical specifications
Suitable for pendant lightsYes
Integrated emergency power supplyNo
DeviceBallast electronic
Exchangeable control unitYes
Equipment suppliedYes
With sensor of lightNo
IFTTT compatibleYes
Start of phase breakNo
End of phase breakNo
Rated life L70/B50 at 25°C70000 h
Luminaire efficiency110 lm/W
Light distribution elementDiffuser
Light emissionDirect
Glare assessment (UGR)19
Power factor (cos phi)0.9
Effective luminous flux3630 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP40
Protection class against impacts (IK)IK02
Number of poles4
Max. number of luminaires per circuit breaker B1683
Max. number of luminaires per circuit breaker C1683
Fire protection "D"No
System power33 W
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-10 .. +45 °C
Color temperature4000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringSuitable for through-wiring
Type of connectionAutomatic bollard
Type of connectionFile terminal
Color uniformity (mcAdam ellipse)SDCM5
DALI variation-2Yes
Interface
Control via bluetoothNo
Possible IFTTT supportYes
DALI variationYes
Variation Touch and DIMYes
