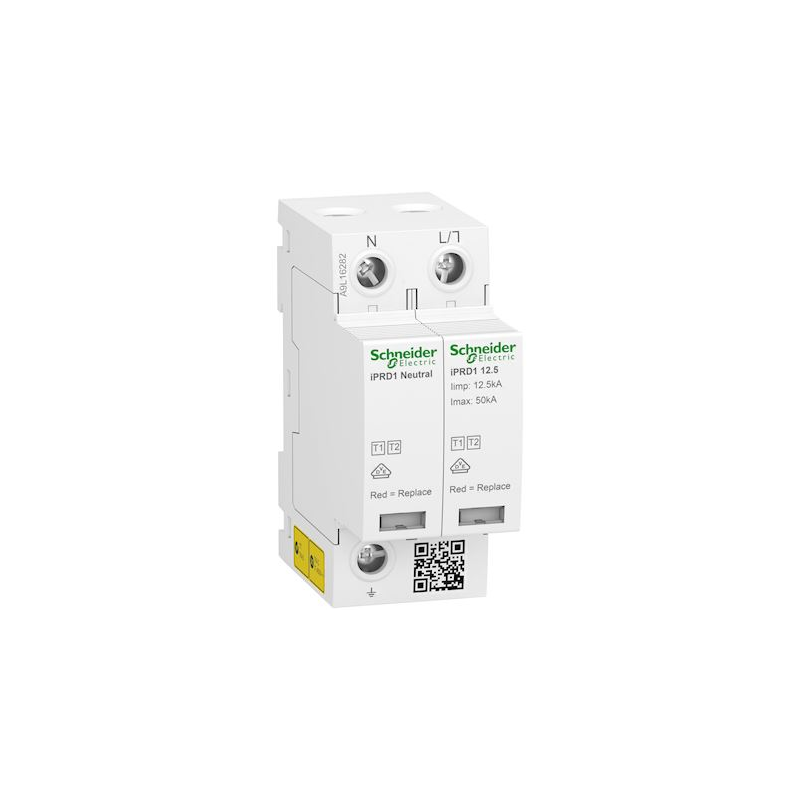

| Manufacturer | Schneider Electric |
| Reference | A9L16282 |
| EAN | 3606481490209 |
| Customs code | 85363030 |
| Product line | Acti9 parafoudre |
| With remote signaling contact | Yes |
| Test class | Type 1 and 2 |
| Test class type 2 | Yes |
| Max. discharge shock current (8/20) | 50 kA |
| Nominal discharge current (8/20) | 20 kA |
| Form of network TN-S | Yes |
| Form of network TT | Yes |
| Protection class (IP) | IP20 |
| Level of protection L-N | 1.5 kV |
| Level of protection N-PE | 1.5 kV |
| Number of wires (without grounding) | 2 |
| Number of poles | 2.0 |
| Short-circuit resistance (Isccr) | 50 kA |
| Max. flexible conductor cross-section (fine thread) | 25.0 mm² |
| Max. rigid conductor cross-section (single wire/multi wire) | 35.0 mm² |
| Remote signalling | Yes |
| Signalling at the device | Optics |
| Highest direct voltage CA | 350 V |
| Nominal voltage CA | 230 V |
| Type of installation | Top-hat rail 35mm |
| Up | 1.5 kV |
