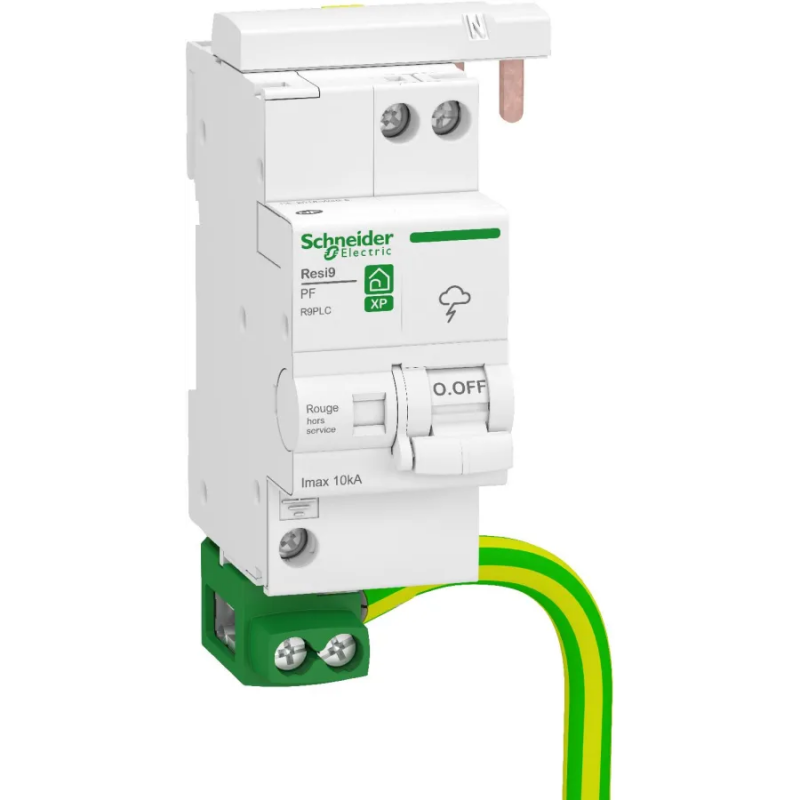

Head surge arrester XP Resi9 - type 2 - 10kA - 1P + N - with accessories

R9PLC
3606481176592
€189.32
Tax included Delivery within 31 working days in Europe - Price for 1u.
Quantity
On order / 31 days

100% secure payments
Close
Description

Head surge arrester XP Resi9 - type 2 - 10kA - 1P + N - with accessories - R9PLC

Head surge arrester XP Resi9 - type 2 - 10kA - 1P + N - with accessories
Protection class (IP)
IP20

main features - Schneider Electric R9PLC

  • Product line: Resi9
  • Protection class (IP): IP20
  • reference: Schneider Electric R9PLC / EAN: 3606481176592
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceR9PLC
EAN3606481176592
Warranty2 years
Customs code85363010
Product lineResi9
Dimensions and weight
Technical specifications
With remote signaling contactNo
Test class type 2Yes
Max. discharge shock current (8/20)10 kA
Nominal discharge current (8/20)5 kA
Form of network TN-SYes
Form of network TTYes
Protection class (IP)IP20
Level of protection L-N1.5 kV
Level of protection N-PE1.5 kV
Number of wires (without grounding)2
Short-circuit resistance (Isccr)4.5 kA
Max. flexible conductor cross-section (fine thread)16 mm²
Max. rigid conductor cross-section (single wire/multi wire)25 mm²
Signalling at the deviceOptics
Highest direct voltage CA275 V
Nominal voltage CA230 V
Type of installationTop-hat rail 35mm
Up1.5 kV

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Schneider Electric R9PLC
documentationProduct sheet - Schneider Electric R9PLC
documentationEnvironmental profile - Schneider Electric R9PLC
