| Manufacturer | Schneider Electric |

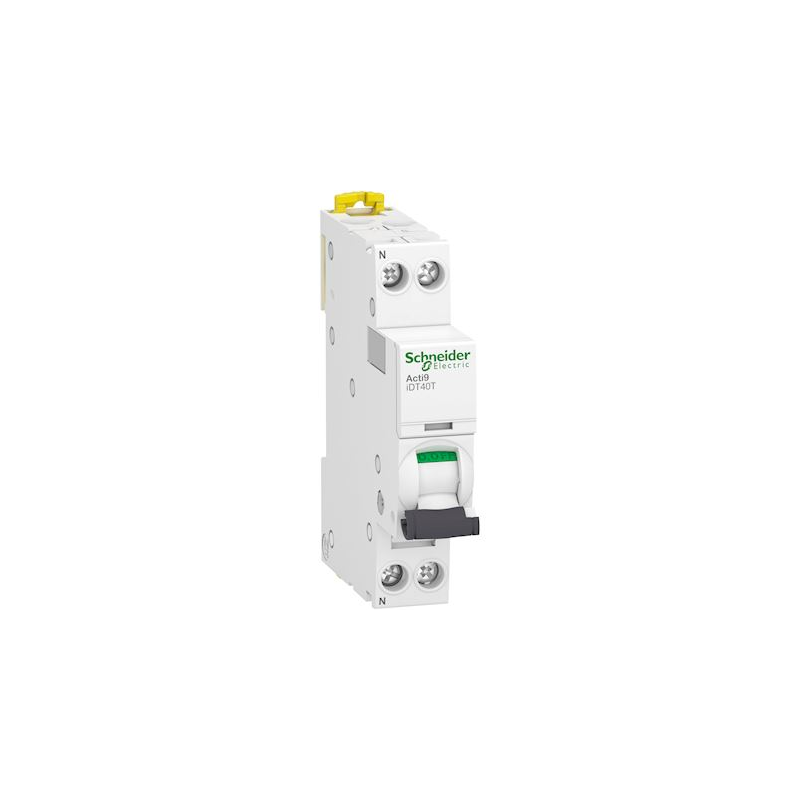

| Reference | A9P22602 |
| EAN | 3606481381293 |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 1.0 |
| Embedding depth | 44.0 mm |
| Calibre | 2.0 A |
| Curve | C |
| Frequency | 50,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2.0 |
| Number of poles protected | 1.0 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 16,0 mm² |
| Ambient temperature in operation | -25,0 .. 70,0 °C |
| Tension | 230.0 V |
| Rated impulse withstand voltage (Uimp) | 4.0 kV |
| Rated insulation voltage (Ui) | 400.0 V |
