• -20%

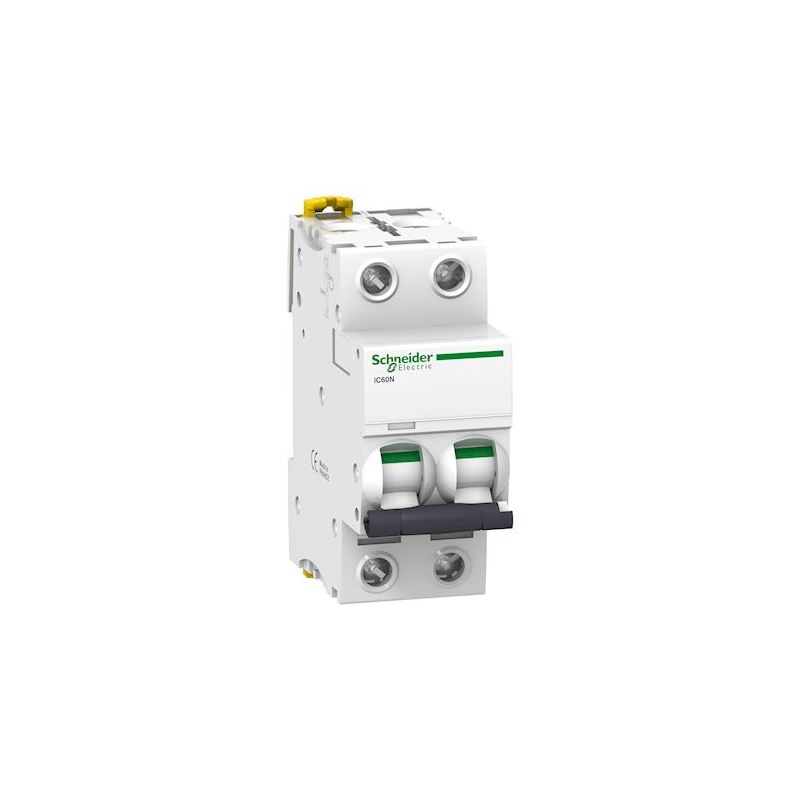

Acti9 iC60N - circuit breaker - 2P - 40A - curve B - 400Vca - 6000A/10kA

A9F76240
3606480093722
Color: Yellow, Product line: Acti9 ic60, Protection class (IP): IP20, Material: Plastic
€165.80
€132.64 Save 20%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Product characteristics

Acti9 iC60N - circuit breaker - 2P - 40A - curve B - 400Vca - 6000A/10kA
Protection class (IP)
IP20

main features

  • Color:
  • Product line: Acti9 ic60
  • Protection class (IP): IP20
  • Material: Plastic
  • reference: Schneider Electric A9F76240 / EAN: 3606480093722
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9F76240
EAN3606480093722
Customs code85362010
Product lineActi9 ic60
Design and finish
ColorYellow
Surface finishGlossy
MaterialPlastic
Electrical information
Type of voltageAC/DC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Height85 mm
Width85 mm
Width in number of modules2.0
Depth10 mm
Embedding depth44.5 mm
Technical specifications
Calibre40.0 A
CurveB
Frequency50,0 .. 60,0 Hz
Protection class (IP)IP20
Protection class against impacts (IK)IK04
Number of poles2.0
Neutral pole simultaneously disconnectedNo
Auxiliary products that can be combinedYes
Halogen-freeYes
Section of connection cable rigid1,0 .. 35,0 mm²
Mounting directionHorizontal and vertical
Ambient temperature in operation-35,0 .. 70,0 °C
Tension400.0 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated insulation voltage (Ui)500.0 V
Surface treatmentLacquered / painted

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Schneider Electric A9F76240
documentationProduct sheet - Schneider Electric A9F76240
documentationEnvironmental profile - Schneider Electric A9F76240
