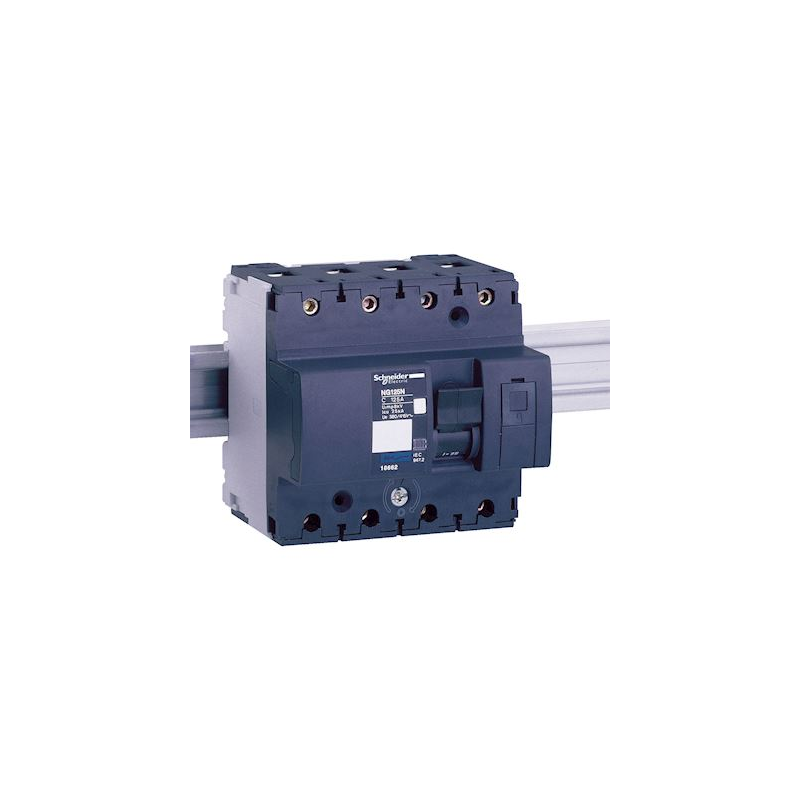

| Manufacturer | Schneider Electric |
| Reference | 18653 |
| EAN | 3303430186533 |
| Customs code | 85362010 |
| Product line | Ng125 |
| Type of voltage | AC/DC |
| Suitable for flush mounting | No |
| Width in number of modules | 6 |
| Embedding depth | 47 mm |
| Calibre | 32 A |
| Overvoltage category | 4 |
| Curve | C |
| Degree of pollution | 3 |
| Frequency | 50 .. 60 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4 |
| Number of poles protected | 4 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1.5 .. 50 mm² |
| Ambient temperature in operation | -30 .. 70 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated insulation voltage (Ui) | 690 V |
