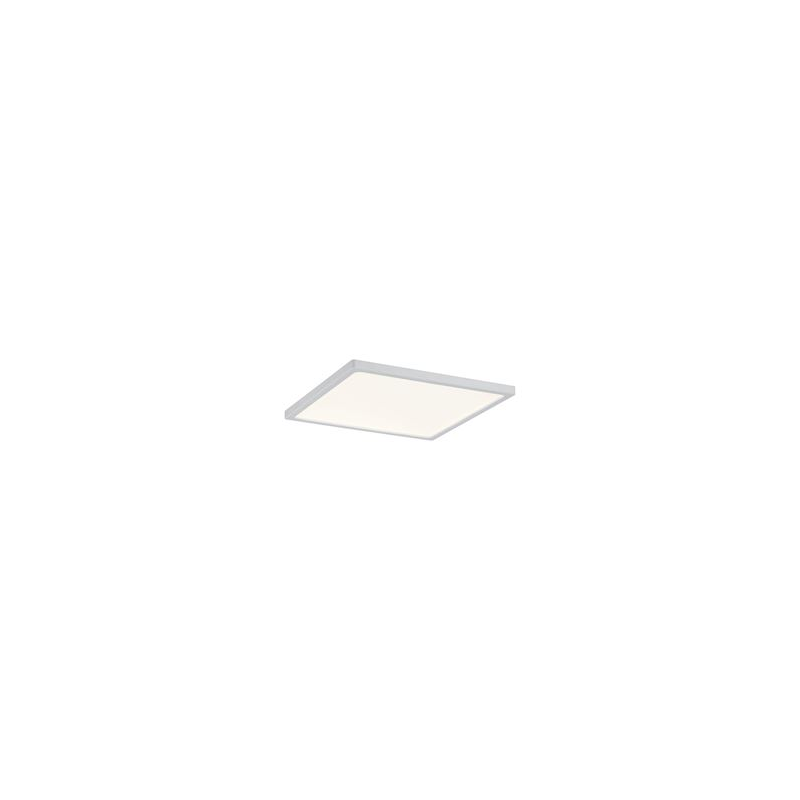

Led panel Areo 180x180mm 1x12W 1200lm 3000K plastic frosted white 230V

92949
4000870929490
Product line: Panel areo, Protection class (IP): IP23, Color temperature: 3000 K
€71.65
€57.32 Save 20%
Tax included Delivery within 16 working days in Europe - Price for 1u.
Quantity
On order / 16 days

100% secure payments
Close
Description

Led panel Areo 180x180mm 1x12W 1200lm 3000K plastic frosted white 230V - 92949

Led panel Areo 180x180mm 1x12W 1200lm 3000K plastic frosted white 230V
Color temperature
3000K
Luminous flux (Lumen)
1000lm
Protection class (IP)
IP23
Class electric
class II

main features - Paulmann 92949

  • Product line: Panel areo
  • Protection class (IP): IP23
  • Color temperature: 3000 K
  • reference: Paulmann 92949 / EAN: 4000870929490
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerPaulmann
Reference92949
EAN4000870929490
Customs code94054231
Product linePanel areo
Design and finish
Case colorWhite
Material of the glassOpaline plastic
MaterialPlastic
Light information
Color of lightWhite
Electrical information
Class electricII
Nominal voltage230...230 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Dimensions and weight
Height/depth180 mm
Installation height/depth35 mm
Width180 mm
Installation width155 mm
Length10 mm
Embedding length155 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceNo required
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Start of phase breakNo
End of phase breakNo
Rated current1 mA
Nominal current of the LED at constant current1 mA
Integrated diameter155 mm
Rated life L70/B50 at 25°C30000 h
Rated life L80/B10 at 25°C30000 h
Luminaire efficiency83.33 lm/W
Light emissionDirect
Luminous flux (Lumen)1000 lm
Effective luminous flux1000 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP23
Wall mountingNo
Number of lamps/modules1
Number of poles2
Fire protection "D"No
Accepted lamp power12 .. 12 W
System power12 W
RegulabilityNot adjustable
Light distributionSymmetrical
Connectable conductor section1.5 mm²
Light source includedYes
Brushed surfaceNo
Nominal room temperature according to IEC 62722-2-125 .. 25 °C
Color temperature3000 K
TypeLED not interchangeable
Type of wiringThrough-wiring included
Type of connectionScrew terminal
Type of connectionScrew terminal
Interface
Control via bluetoothNo

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Paulmann 92949
documentationProduct sheet - Paulmann 92949
documentationInstructions - Paulmann 92949
