Junistar Lux Square downlight brushed steel 520lm 3000K Ra 98 phase break

902585
7021989025856
Product line: Junistar, Protection class (IP): IP44, Color rendering index (CRI): 90 .. 100, Color temperature: 3000 K
€158.78
€128.62 Save 19%
Tax included Delivery within 19 working days in Europe - Price for 1u.
Quantity
On order / 19 days

100% secure payments
Close
Description

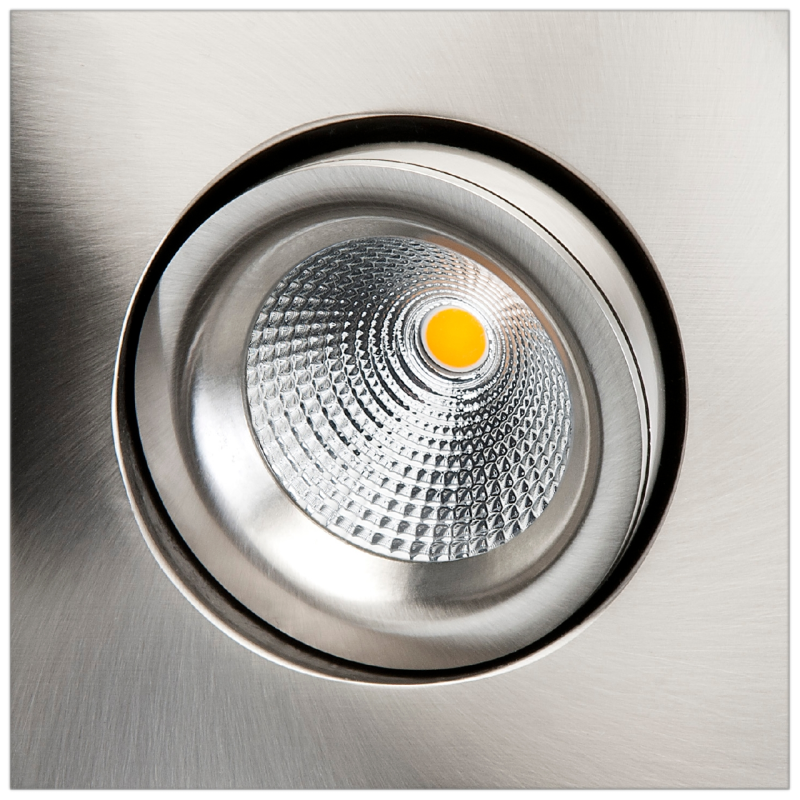

Junistar Lux Square downlight brushed steel 520lm 3000K Ra 98 phase break - 902585

Junistar Lux Square downlight brushed steel 520lm 3000K Ra 98 phase break
Color temperature
3000K
Beam angle
Extensive beam 40-80°
Luminous flux (Lumen)
658..763lm
Protection class (IP)
IP44
Class electric
class II
Color rendering index (CRI)
90 .. 100

main features - SG Lighting 902585

  • Product line: Junistar
  • Protection class (IP): IP44
  • Color rendering index (CRI): 90 .. 100
  • Color temperature: 3000 K
  • reference: SG Lighting 902585 / EAN: 7021989025856

High Quality Product

By offering an extended warranty to 5 years, SG Lighting ensures a high level of quality of this product that will give you satisfaction for many years. Thanks to its aluminium structure this Junistar range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSG Lighting
Reference902585
EAN7021989025856
Warranty5 years
Customs code94051190
Product lineJunistar
Design and finish
Case colorAnthracite
Material of the glassGlass transparent
MaterialAluminum
Light information
Beam angleFaisceau extensif 40-80°
Color of lightWhite
Color rendering index (CRI)90 .. 100
Electrical information
Class electricII
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Embedding diameter83 mm
Height50 mm
Height/depth50 mm
Installation height/depth48 mm
Width95 mm
Length95 mm
Embedding length163 mm
Technical specifications
Suitable for pendant lightsNo
Bulb(s) included(s)Yes
DeviceLED driver constant current
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied exchangeable lampA++
Energy efficiency class of the supplied lampA++, A+, A (LED)
Max. energy efficiency class of the exchangeable lampA++
Minimum energy efficiency class of the exchangeable lampA++
Start of phase breakNo
End of phase breakYes
Dimensions95 x 95 x 50 mm ( L x L x H )
Rated life L90/B10 at 25°C100000 h
Luminous efficacy of the lamp65 lm/W
Luminaire efficiency70 lm/W
Light emissionDirect
Power factor (cos phi)0.9
Luminous flux (Lumen)658...763 lm
Effective luminous flux520 lm
Photobiological risk group according to EN 62471GR1
Protection class (IP)IP44
AssemblyBuilt-in
Wall mountingNo
Number of lamps/modules1
Number of poles2
PartBathroom
Fire protection "D"No
Accepted lamp power7 .. 7 W
System power8 W
ReflectorUltra glossy
RegulabilityOrientable
Light distributionSymmetrical
Wire surface1 mm²
Connectable conductor section2.5 mm²
Light source includedYes
Light source includedYes
Brushed surfaceYes
Nominal room temperature according to IEC 62722-2-1-40 .. 105 °C
Color temperature3000 K
TypeLED not interchangeable
Type of wiringSuitable for through-wiring
Color uniformity (mcAdam ellipse)SDCM1
