Find all the products of the brand Ledvance at the best price on the store domeashop.com.
See all products Ledvance
You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

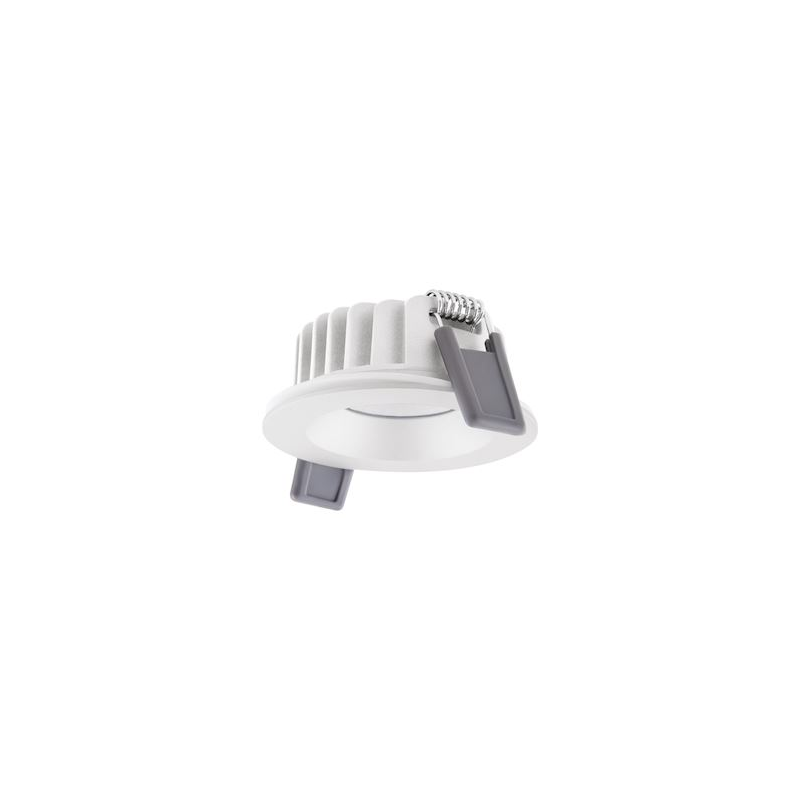

| Manufacturer | Ledvance |
| Reference | 799943 |
| EAN | 4058075799943 |
| Customs code | 94054239 |
| Product line | Performance |
| Case color | White |
| Material of the glass | Plastic transparent |
| Material | Aluminum |
| Beam angle | Faisceau moyen 20-40° |
| Color of light | White |
| Color rendering index (CRI) | 90 .. 100 |
| Class electric | II |
| Nominal voltage | 220...240 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for flush mounting | Yes |
| Suitable for clamp mounting | No |
| Suitable for bar mounting | No |
| Suitable for bearing/floor mounting | No |
| Suitable for rail mounting | No |
| Suitable for crossbar mounting | No |
| Diameter | 81 mm |
| Height/depth | 34 mm |
| Installation height/depth | 35 mm |
| Width | 81 mm |
| Installation width | 68 mm |
| Length | 81 mm |
| Embedding length | 68 mm |
| Suitable for pendant lights | No |
| Integrated emergency power supply | No |
| Device | LED driver constant current |
| Exchangeable control unit | Yes |
| Equipment supplied | Yes |
| With sensor of light | No |
| IFTTT compatible | Yes |
| Start of phase break | Yes |
| End of phase break | Yes |
| Rated current | 28 mA |
| Nominal current of the LED at constant current | 28 mA |
| Integrated diameter | 68 mm |
| Rated life L70/B50 at 25°C | 50000 h |
| Luminaire efficiency | 95 lm/W |
| Light distribution element | Focus lens |
| Light emission | Direct |
| Power factor (cos phi) | 0.9 |
| Luminous flux (Lumen) | 570 lm |
| Effective luminous flux | 570 lm |
| Photobiological risk group according to EN 62471 | GR1 |
| Protection class (IP) | IP65 |
| Protection class against impacts (IK) | IK03 |
| Wall mounting | No |
| Number of poles | 2 |
| Max. number of luminaires per circuit breaker B16 | 376 |
| Max. number of luminaires per circuit breaker C16 | 457 |
| Fire protection "D" | No |
| System power | 8 W |
| Regulability | Not adjustable |
| Light distribution | Symmetrical |
| Light source included | Yes |
| Light source included | Yes |
| Brushed surface | No |
| Nominal room temperature according to IEC 62722-2-1 | +40 .. -20 °C |
| Color temperature | 4000 K |
| Glow-wire test according to IEC 60695-2-11 | 650 °C - 30 s |
| Type | LED not interchangeable |
| Type of wiring | Suitable for through-wiring |
| Color uniformity (mcAdam ellipse) | SDCM3 |
| Control via bluetooth | No |
| Possible IFTTT support | Yes |
