• -20%

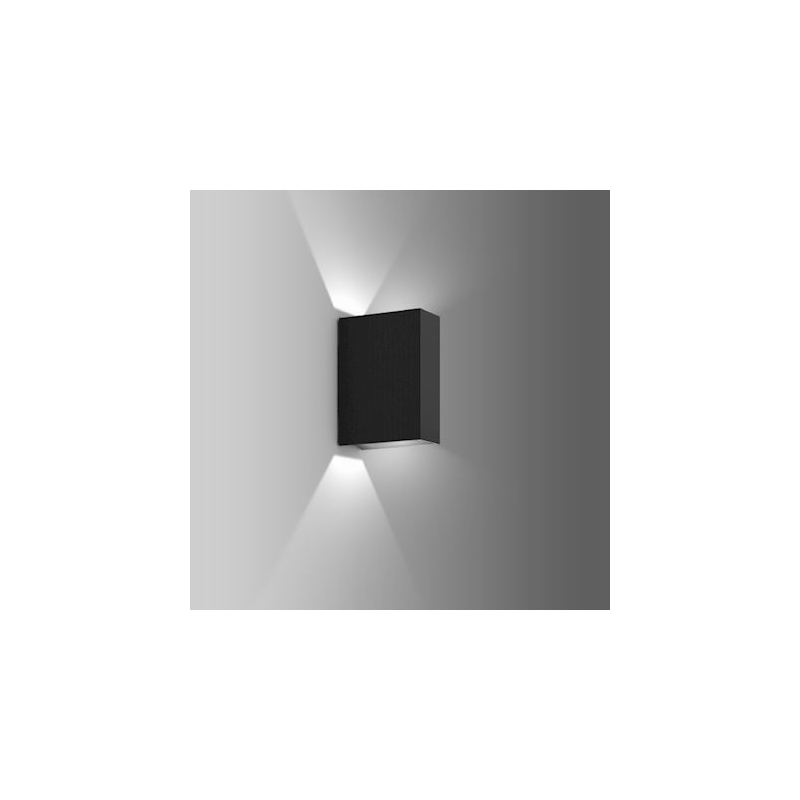

HB 113 11W 280lm 830 anthracite On/Off

612143.0031
4051859211648
Product line: Home 113, Protection class (IP): IP54, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€202.66
€162.12 Save 20%
Tax included Delivery within 24 working days in Europe - Price for 1u.
Quantity
On order / 24 days

100% secure payments
Close
Description

Product characteristics

HB 113 11W 280lm 830 anthracite On/Off
Color temperature
3000K
Beam angle
diffuse beam
Protection class (IP)
IP54
Class electric
Class I
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
17.000

main features

  • Product line: Home 113
  • Protection class (IP): IP54
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: RZB 612143.0031 / EAN: 4051859211648

High Quality Product

Thanks to its aluminium structure this Home 113 range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerRZB
Reference612143.0031
EAN4051859211648
Customs code94051190
Product lineHome 113
Design and finish
Case colorAnthracite
Material of the glassGlass transparent
MaterialAluminum
Light information
Beam angleFaisceau diffus
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage220.000 .. 240.000 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth125.000 mm
Width43.000 mm
Length90.000 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classG
Start of phase breakNo
End of phase breakNo
Rated current46.000-50.000 mA
Rated life L70/B50 at 25°C25000.000 h
Luminaire efficiency26 lm/W
Light emissionDirect/indirect
Recessed in insulated ceiling, fire protection "F with roof".Yes
Glare assessment (UGR)17.000
Effective luminous flux280 lm
Photobiological risk group according to EN 62471GR1
Protection class (IP)IP54
Protection class against impacts (IK)IK03
Wall mountingYes
Number of lamps/modules2.000
Number of poles3
Max. number of luminaires per circuit breaker B1699.000
Fire protection "D"No
Accepted lamp power11 W
System power11.000 W
Light distributionAsymmetrical
Wire surface1.500 mm²
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-20 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11960 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Type of connectionScrew terminal
Type of connectionScrew terminal
Interface
Control via bluetoothNo
