• -19%

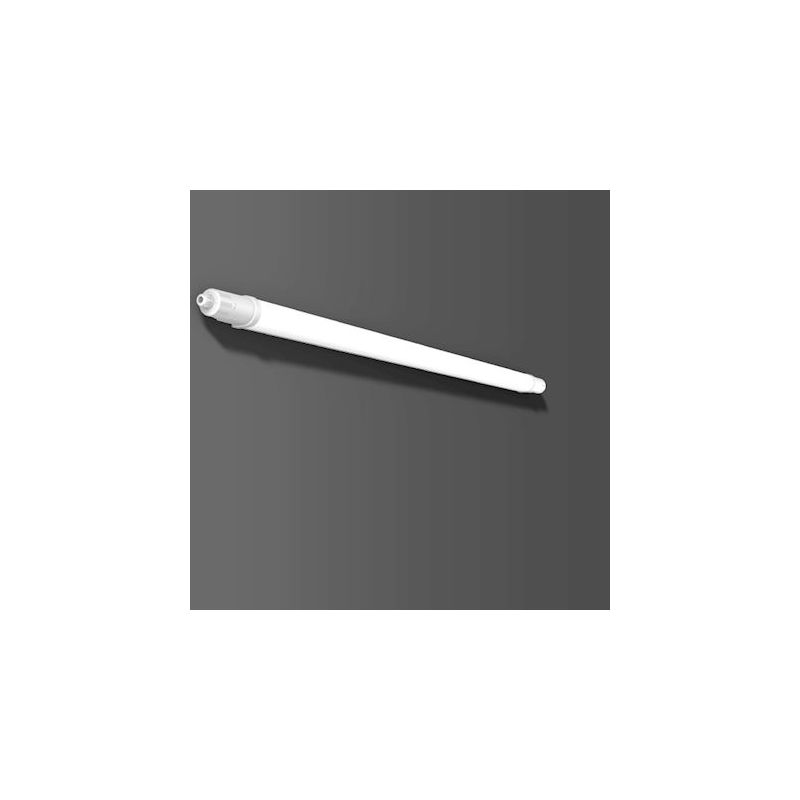

HB 702 35 / 52W 4000 / 6000lm 840 white On/Off

451217.002
4051859396383
Product line: Home 702, Protection class (IP): IP65, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€104.86
€84.93 Save 19%
Tax included
Quantity
Out-of-Stock

100% secure payments
Close
Description

Product characteristics

HB 702 35 / 52W 4000 / 6000lm 840 white On/Off
Color temperature
4000K
Beam angle
diffuse beam
Protection class (IP)
IP65
Class electric
class II
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
24.500

main features

  • Product line: Home 702
  • Protection class (IP): IP65
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: RZB 451217.002 / EAN: 4051859396383
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerRZB
Reference451217.002
EAN4051859396383
Customs code94051140
Product lineHome 702
Design and finish
Case colorWhite
Material of the glassOpaline plastic
MaterialPlastic
Light information
Beam angleFaisceau diffus
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220.000 .. 240.000 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth53.000 mm
Width53.000 mm
Length1560.000 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classE
Start of phase breakNo
End of phase breakNo
Rated current217.000-236.000 mA
Rated life L70/B50 at 25°C35000.000 h
Luminaire efficiency116 lm/W
Light emissionDirect/indirect
Recessed in insulated ceiling, fire protection "F with roof".Yes
Glare assessment (UGR)24.500
Power factor (cos phi)0.980
Effective luminous flux4000 lm
Photobiological risk group according to EN 62471GR0
Energy efficiency index (EEI)0.09
Protection class (IP)IP65
Protection class against impacts (IK)IK07
Wall mountingYes
Number of lamps/modules1.000
Number of poles3
Max. number of luminaires per circuit breaker B169.000
Max. number of luminaires per circuit breaker C1615.000
Fire protection "D"Yes
Accepted lamp power35.000-52.000 W
System power52.000 W
Lumen adjustmentLevels
Light distributionSymmetrical
Wire surface2.500 mm²
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-20 °C
Color temperature4000 K
Glow-wire test according to IEC 60695-2-11750 °C - 30 s
TypeLED not interchangeable
Type of wiringThrough-wiring included
Type of connectionAutomatic bollard
Type of connectionFile terminal
Color uniformity (mcAdam ellipse)SDCM5
Interface
Control via bluetoothNo
