Luminaire LED anti-humidity IP66 - Lucy 1800 LED IP66 8000 840 TW

96630334
5037319425021
Product line: Lucy, Protection class (IP): IP66, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€188.81
€152.93 Save 19%
Tax included
Quantity
Out-of-Stock

100% secure payments
Close
Description

Luminaire LED anti-humidity IP66 - Lucy 1800 LED IP66 8000 840 TW - 96630334

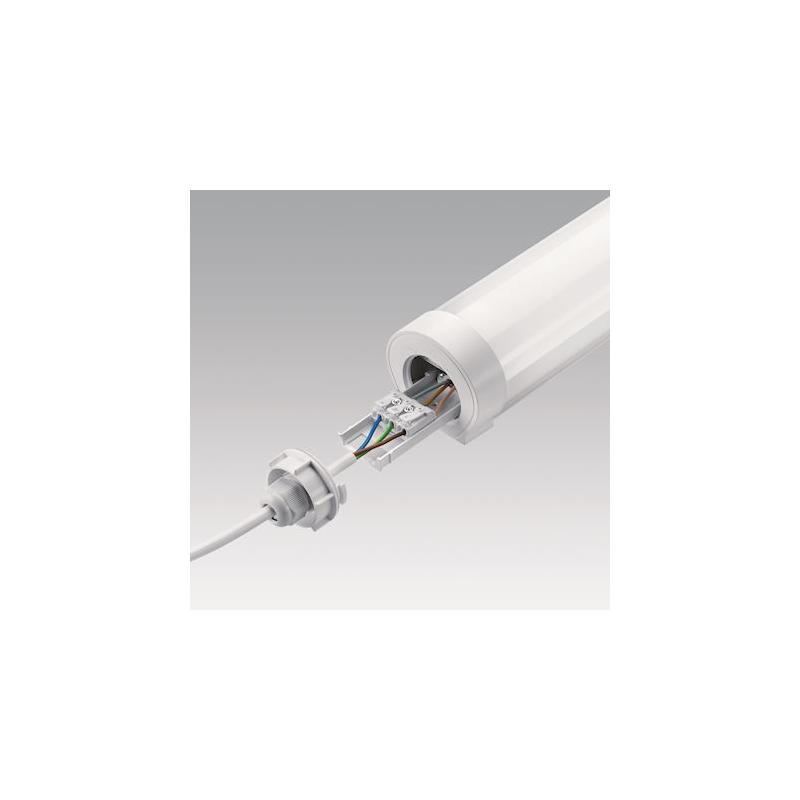

Luminaire LED anti-humidity IP66 - Lucy 1800 LED IP66 8000 840 TW
Color temperature
4000K
Protection class (IP)
IP66
Class electric
class I
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
27

main features - Thorn 96630334

  • Product line: Lucy
  • Protection class (IP): IP66
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Thorn 96630334 / EAN: 5037319425021
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerThorn
Reference96630334
EAN5037319425021
Customs code94051140
Product lineLucy
Design and finish
Case colorWhite
Material of the glassOpaline plastic
MaterialPlastic
Light information
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth68 mm
Width77 mm
Length1825 mm
Technical specifications
Suitable for pendant lightsNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Start of phase breakNo
End of phase breakNo
Rated life L70/B50 at 25°C74000 h
Rated life L80/B50 at 25°C33000 h
Rated life L90/B50 at 25°C16000 h
Light emissionDirect
Glare assessment (UGR)27
Power factor (cos phi)0.9
Effective luminous flux8008 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP66
Protection class against impacts (IK)IK08
Number of lamps/modules1
Max. number of luminaires per circuit breaker B1630
Max. number of luminaires per circuit breaker C1635
Fire protection "D"Yes
Accepted lamp power66 W
System power66 W
Light distributionSymmetrical
Light source includedYes
Light source includedYes
Harmonic distortion rate15
Color temperature4000 K
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeLED not interchangeable
Type of wiringThrough-wiring included
Color uniformity (mcAdam ellipse)SDCM4
