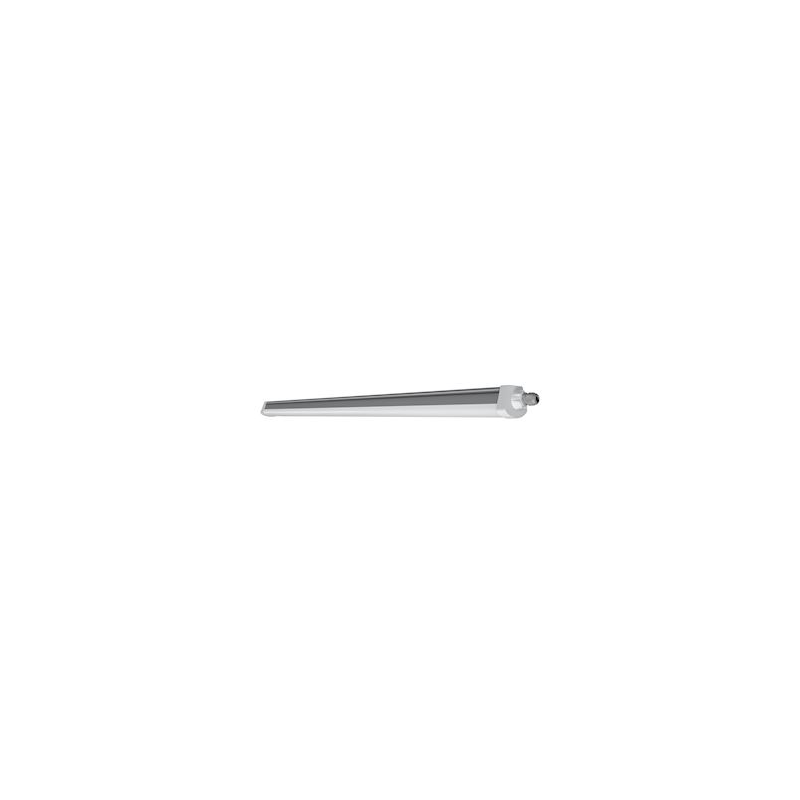

DP Compact 1500 31W/4000K 3800lm IP66 IK08 watertight Compact

Reference 210080

EAN 4058075210080

Brand Ledvance

Product line: Performance, Protection class (IP): IP66, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K

€116.14

€92.91 Save 20%

Tax included Delivery within 36 working days in Europe - Price for 1 u.

Quantity

On order / 36 days

100% secure payments

Description

Description

DP Compact 1500 31W/4000K 3800lm IP66 IK08 watertight Compact - 210080

DP Compact 1500 31W/4000K 3800lm IP66 IK08 watertight Compact

4000K

very extensive beam +80°

IP66

class II

80 .. 89

main features - Ledvance 210080

Product line: Performance
Protection class (IP): IP66
Color rendering index (CRI): 80 .. 89
Color temperature: 4000 K
reference: Ledvance 210080 / EAN: 4058075210080

High Quality Product

By offering an extended warranty to 5 years, Ledvance ensures a high level of quality of this product that will give you satisfaction for many years.

Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	Ledvance
Reference	210080
EAN	4058075210080
Warranty	5 years
Customs code	94051140
Product line	Performance

Design and finish

Case color	Grey
Material of the glass	Opaline plastic
Material	Plastic

Light information

Beam angle	Faisceau très extensif +80°
Color of light	White
Color rendering index (CRI)	80 .. 89

Electrical information

Class electric	II
Nominal voltage	220 .. 240 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Suitable for surface mounting	Yes
Suitable for flush mounting	No

Dimensions and weight

Height/depth	68 mm
Width	86 mm
Length	1590 mm

Technical specifications

Suitable for pendant lights	No
Integrated emergency power supply	No
Device	Ballast electronic
Exchangeable control unit	No
Equipment supplied	Yes
With sensor of light	No
Energy efficiency class of the supplied lamp	A++, A+, A (LED)
IFTTT compatible	Yes
Start of phase break	No
End of phase break	No
Rated current	170-170 mA
Nominal current of the LED at constant current	170 mA
Life span	50000 h
Rated life L70/B10 at 25°C	50000 h
Rated life L70/B50 at 25°C	50000 h
Rated life L80/B10 at 25°C	35000 h
Rated life L80/B50 at 25°C	35000 h
Rated life L90/B10 at 25°C	20000 h
Rated life L90/B50 at 25°C	20000 h
Luminaire efficiency	120 lm/W
Light distribution element	Diffuser
Light emission	Direct
Power factor (cos phi)	0.9
Effective luminous flux	3800 lm
Photobiological risk group according to EN 62471	GR0
Protection class (IP)	IP66
Protection class against impacts (IK)	IK08
Wall mounting	Yes
Number of lamps/modules	31
Number of poles	3
Max. number of luminaires per circuit breaker B16	46
Max. number of luminaires per circuit breaker C16	59
System power	31 W
Light distribution	Symmetrical
Light source included	Yes
Light source included	Yes
Harmonic distortion rate	20
Nominal room temperature according to IEC 62722-2-1	-35-+50 °C
Color temperature	4000 K
Glow-wire test according to IEC 60695-2-11	850 °C - 30 s
Type	LED not interchangeable
Type of wiring	Through-wiring included
Type of connection	Automatic bollard
Type of connection	File terminal
Color uniformity (mcAdam ellipse)	SDCM5
