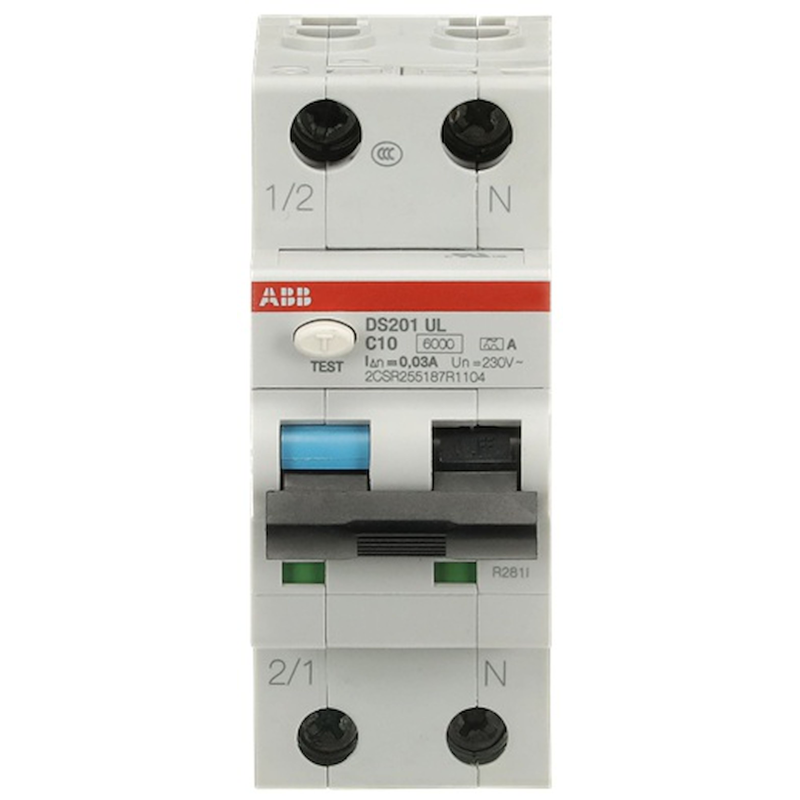

| Manufacturer | ABB |
| Reference | 2CSR255187R1104 |
| EAN | 8012542576716 |
| Customs code | 85363010 |
| Type of differential current | A |
| Type of voltage | AC |
| Width in number of modules | 2 |
| Embedding depth | 69 mm |
| Calibre | 10 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | Autre |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Number of poles protected | 1 |
| Section of connection cable rigid | 25 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 .. 55 °C |
| Tension | 240 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
Reference: 2CSR772140R1134
Differential circuit breaker (DS20CR M) 2P 10kA-13A-CBE C-30mA type A
Reference: 2CSR255041R1204
DS201 differential circuit breaker - 1P+N - 20A - CBE C - 6000A/10kA-30mA-type AC
Reference: 2CSR256140R1164
Circuit breaker DIFF. Compact 3P+N (right) 16A Icu-10kA CBE C 30mA type A
Reference: 2CSR255141R1404
DS201 differential circuit breaker - 1P+N - 40A - CBE C - 6000A/10kA-30mA-type A
Reference: 2CSR246040R3104
Circuit breaker DIFF. Compact 3P+N (right) 10A 6kA CBE C 300mA type AC
Reference: 2CSR255041R1404
DS201 differential circuit breaker - 1P+N - 40A - CBE C - 6000A/10kA-30mA-type AC
Reference: 2CSR256440R1324
Circuit breaker DIFF. Compact 3P+N (right) 32A 10kA CBE C 30mA type APR immune
Reference: 2CSR245041R1164
DS201L differential circuit breaker - 1P+N - 16A - CBE C - 4500A/6kA-30mA-type AC
Reference: 2CSR772199R1254
Differential circuit breaker (DS20CR M) 2P 10kA-25A-CBE C-30mA type A - 110V
Reference: 2CSR255441R3164
DS201 differential circuit breaker - 1P+N - 16A - CBE C - 6000A/10kA-300mA-type APR
