| Manufacturer | Schneider Electric |

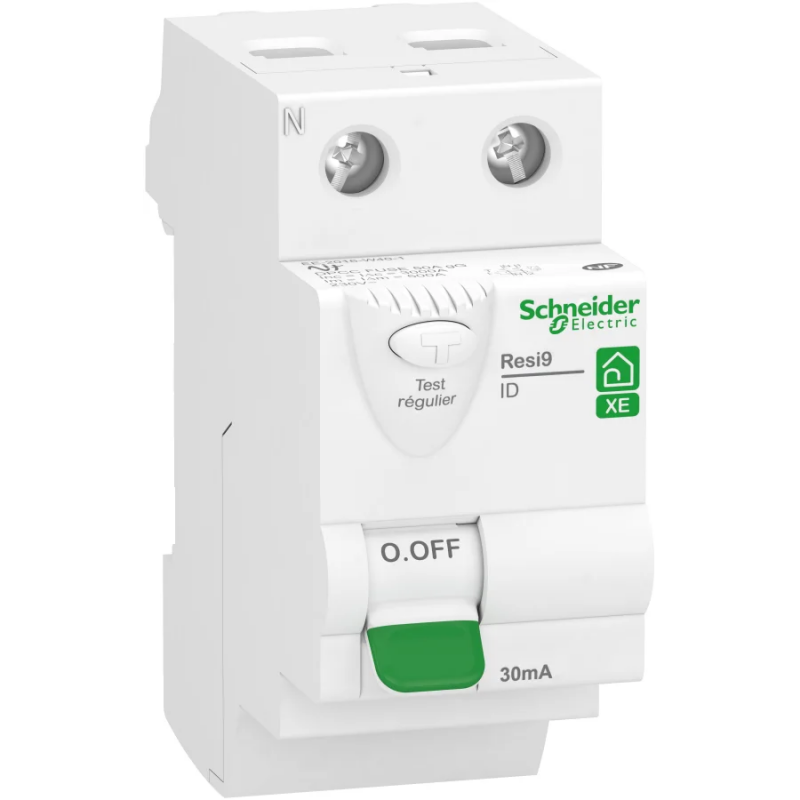

| Reference | R9ERA240 |
| EAN | 3606481100252 |
| Warranty | 2 years |
| Customs code | 85362010 |
| Product line | Resi9 xe |
| Short-circuit resistance (Icw) | 3 kA |
| Type of differential current | A |
| Type of voltage | AC |
| Width in number of modules | 2 |
| Embedding depth | 44 mm |
| Calibre | 40 A |
| Degree of pollution | 2 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| RAL number | 9003 |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 35,0 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25,0 40,0 °C |
| Tension | 230 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 440 V |
| Shock current resistance | 0.25 kA |
| Type of installation | DIN rail |
