| Manufacturer | Schneider Electric |
| Reference | 18269 |
| EAN | 3303430182696 |
| Customs code | 85363030 |

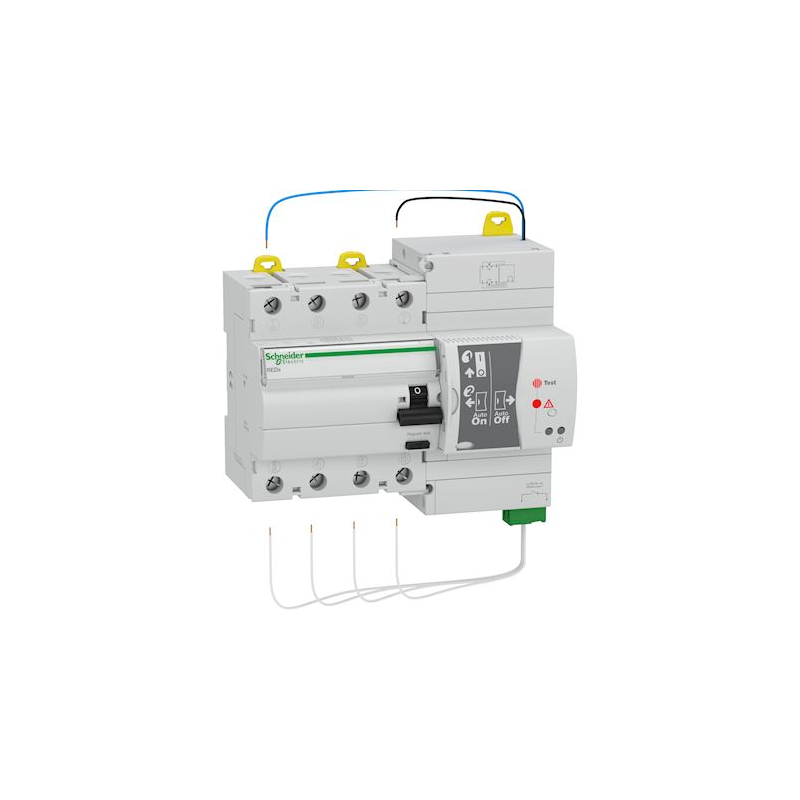

| Product line | Multi9 |
| Short-circuit resistance (Icw) | 10 kA |
| Type of differential current | A |
| Type of voltage | AC |
| Width in number of modules | 7.0 |
| Embedding depth | 44.0 mm |
| Size (according to DIN 43880) | 4 |
| With locking device | Yes |
| Calibre | 63.0 A |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4.0 |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 2,5 .. 1,5 mm² |
| Sensitivity | 0.3 A |
| Ambient temperature in operation | -5,0 .. 40,0 °C |
| Tension | 400.0 V |
| Rated impulse withstand voltage (Uimp) | 4.0 kV |
| Rated insulation voltage (Ui) | 500.0 V |
| Shock current resistance | 0.25 kA |
| Type of installation | DIN rail |
