Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.
See all products Schneider Electric
You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..
| Manufacturer | Schneider Electric |

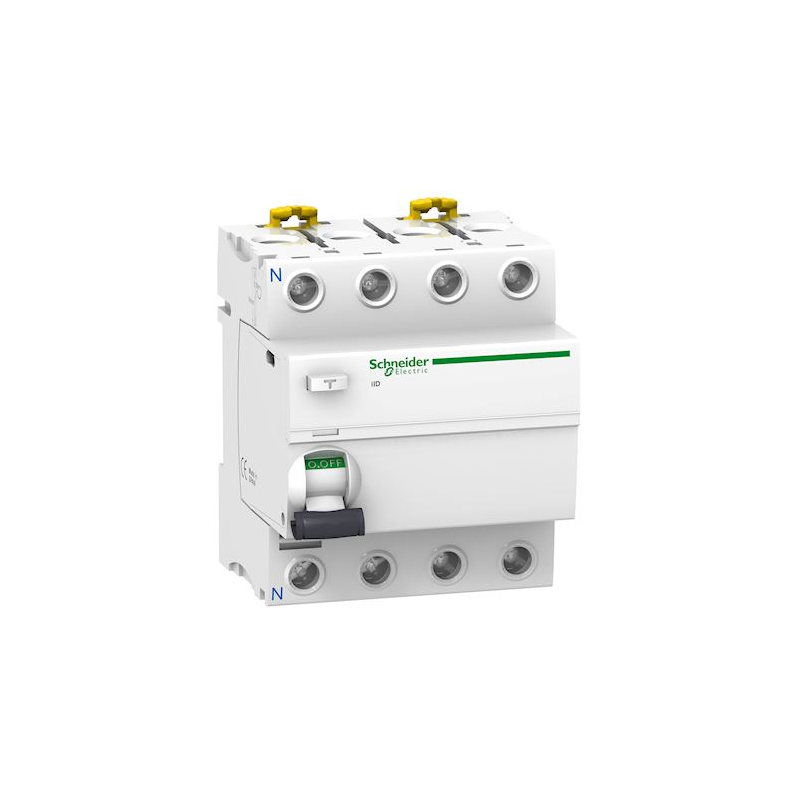

| Reference | A9R14425 |
| EAN | 3606480091315 |
| Customs code | 85362010 |
| Product line | Acti9 |
| Short-circuit resistance (Icw) | 10 kA |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 4 |
| Embedding depth | 44 mm |
| Size (according to DIN 43880) | 4 |
| Calibre | 25 A |
| Degree of pollution | 3 |
| Frequency | 50/60Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4 |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 35,0 .. 1,0 mm² |
| Sensitivity | 0.3 A |
| Ambient temperature in operation | -5,0 60,0 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 0.25 kA |
| Type of installation | DIN rail |
Reference: A9R55425
Acti9 iIDK - switch DIFF - 4P - 25A - 500A/4,5kA - 30mA - type AC
Reference: A9R35440
Acti9 iID differential switch 4P 40A 300mA selective type Asi
Reference: A9Z64463
Differential switch 63A Acti9 iID - type B-SI - 4 clusters - time delay instant
Reference: M9R81263
Multi9 - differential switch GFP - 2P - 63A 26mA - type Asi - 120-240V
Reference: R9ERC225
Differential switch 25A XE Resi9 - type AC - bipolar - 30mA - 230V CA - plug-in
Reference: A9R67625
Differential switch group head Acti9 iIG40 - 1P+N - 25A - 30mA - type AC
Reference: A9R79725
Differential switch group head Acti9 iIG40K - 3P+N - 25A - 300mA - type AC
Reference: A9Z51240
Differential switch 40A Acti9 iID - type B-EV - 2 clusters - 30mA - 230V - CA
Reference: A9R67640
Differential switch group head Acti9 iIG40 - 1P+N - 40A - 30mA - type AC
