| Manufacturer | Schneider Electric |

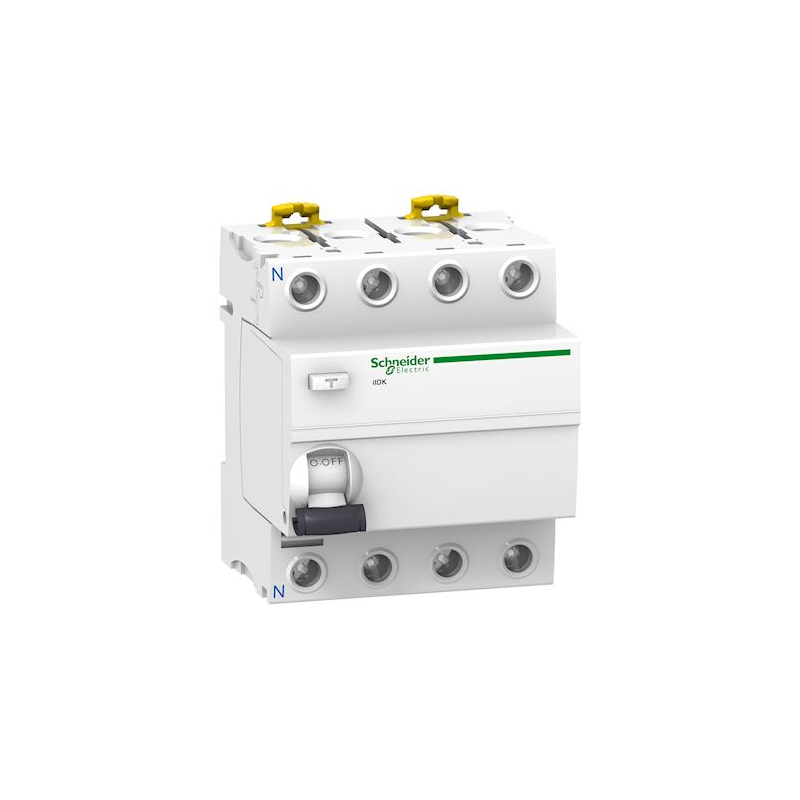

| Reference | A9R56440 |
| EAN | 3606480688492 |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 4 |
| Embedding depth | 44 mm |
| Size (according to DIN 43880) | 4 |
| Calibre | 40 A |
| Degree of pollution | 2 |
| Frequency | 50/60Hz |
| Protection class (IP) | IP40 |
| Number of poles | 4 |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 35,0 mm² |
| Sensitivity | 0.3 A |
| Ambient temperature in operation | -5,0 60,0 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 440 V |
| Shock current resistance | 0.25 kA |
| Type of installation | DIN rail |
Reference: A9Z64425
Differential switch 25A Acti9 iID - type B-SI - 4 clusters - 300mA - 400V - CA
Reference: A9R77725
Differential switch group head Acti9 iIG40 - 3P+N - 25A - 300mA - type AC
Reference: R9ERC225
Differential switch 25A XE Resi9 - type AC - bipolar - 30mA - 230V CA - plug-in
Reference: A9R56425
Acti9 iIDK - switch DIFF - 4P - 25A - 500A/4,5kA - 300mA - type AC
Reference: R9PRA263
Reference: A9R69625
Acti9 iIG40K - differential switch group head - 1P+N 25A 30mA type AC
Reference: R9ERC240
Differential switch 40A XE Resi9 - type AC - bipolar - 30mA - 230V CA - plug-in
Reference: A9Z61425
Differential switch 25A Acti9 iID - type B-SI - 4 clusters - 30mA - 400V - CA
Reference: A9R67725
Differential switch group head Acti9 iIG40 - 3P+N - 25A - 30mA - type AC
Reference: A9Z65440
Differential switch 40A Acti9 iID - type B-SI - 4 clusters - 300mA - 400V - CA
Reference: A9R12440
Differential switch ilD Tétra Acti9 - AC - 40A - sensitivity : 100mA
