| Manufacturer | Schneider Electric |

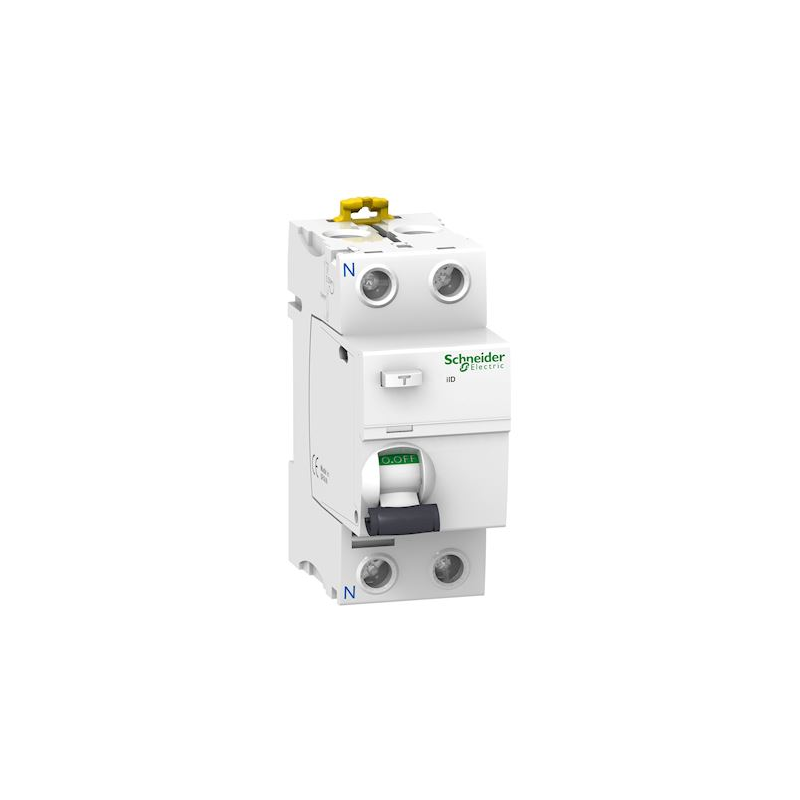

| Reference | A9R35240 |
| EAN | 3606480089619 |
| Customs code | 85362010 |
| Product line | Acti9 |
| Short-circuit resistance (Icw) | 1.5 kA |
| Type of differential current | A |
| Type of voltage | AC |
| Width in number of modules | 2 |
| Embedding depth | 44 mm |
| Size (according to DIN 43880) | 2 |
| With locking device | Yes |
| Calibre | 40 A |
| Degree of pollution | 3 |
| Frequency | 50/60Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 35,0 mm² |
| Selective | Yes |
| Sensitivity | 0.3 A |
| Ambient temperature in operation | -25,0 60,0 °C |
| Tension | 230 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 3 kA |
| Type of installation | DIN rail |
