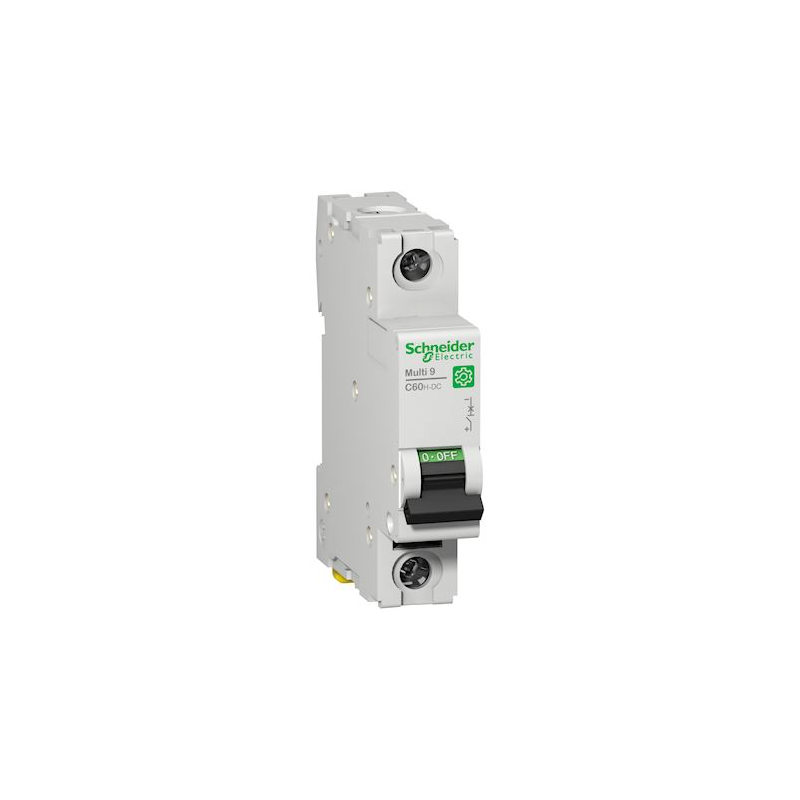

| Manufacturer | Schneider Electric |
| Reference | M9U21132 |
| EAN | 3606480741685 |
| Customs code | 85362010 |
| Product line | C60 |
| Type of voltage | DC |
| Suitable for flush mounting | No |
| Width in number of modules | 1.0 |
| Embedding depth | 44.0 mm |
| Calibre | 32.0 A |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Protection class (IP) | IP20 |
| Number of poles | 1.0 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Ambient temperature in operation | -25,0 .. 70,0 °C |
| Tension | 250.0 V |
| Rated impulse withstand voltage (Uimp) | 6.0 kV |
| Rated insulation voltage (Ui) | 500.0 V |
