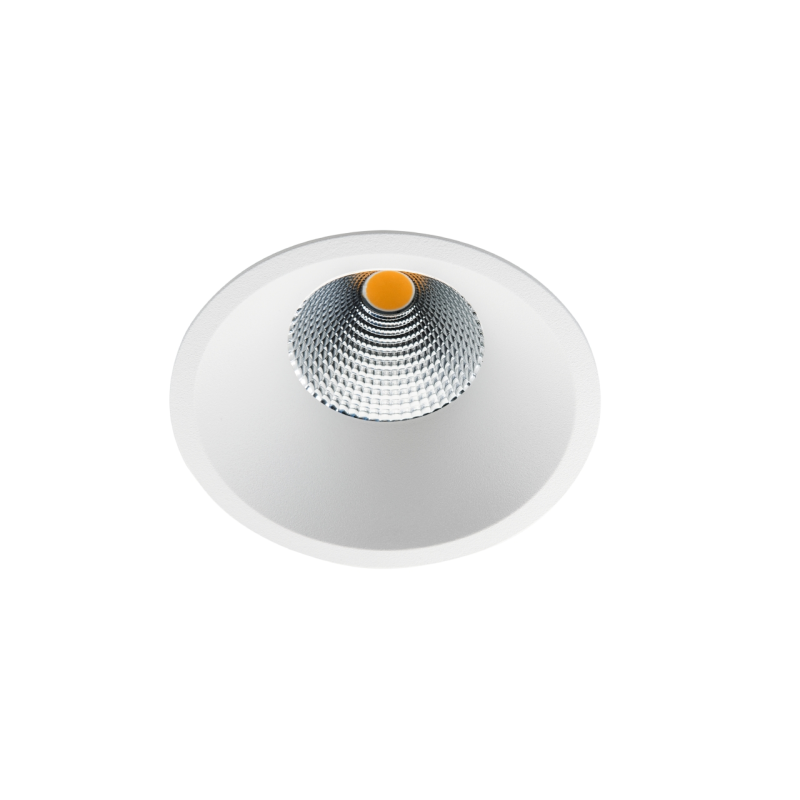

SOFT Slim downlight interior white 730lm 2700K Ra 98 phase break

903214
7021989032144
Product line: Soft, Protection class (IP): IP54, Color rendering index (CRI): 90 .. 100, Color temperature: 2700 K
€139.79
Tax included Delivery within 19 working days in Europe - Price for 1u.
Quantity
On order / 19 days

100% secure payments
Close
Description

SOFT Slim downlight interior white 730lm 2700K Ra 98 phase break - 903214

SOFT Slim downlight interior white 730lm 2700K Ra 98 phase break
Color temperature
2700K
Beam angle
Extensive beam 40-80°
Luminous flux (Lumen)
999lm
Protection class (IP)
IP54
Class electric
class II
Color rendering index (CRI)
90 .. 100
Glare assessment (UGR)
18.6

main features - SG Lighting 903214

  • Product line: Soft
  • Protection class (IP): IP54
  • Color rendering index (CRI): 90 .. 100
  • Color temperature: 2700 K
  • reference: SG Lighting 903214 / EAN: 7021989032144

High quality product

Thanks to its aluminium structure this Soft range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSG Lighting
Reference903214
EAN7021989032144
Customs code94051190
Product lineSoft
Design and finish
Case colorWhite
Material of the glassGlass transparent
MaterialAluminum
Light information
Beam angleFaisceau extensif 40-80°
Color of lightWhite
Color rendering index (CRI)90 .. 100
Electrical information
Class electricII
Nominal voltage230...230 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Diameter90 mm
Embedding diameter83 mm
Height/depth52 mm
Installation height/depth52 mm
Width90 mm
Installation width83 mm
Length90 mm
Embedding length83 mm
Technical specifications
Suitable for pendant lightsNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied exchangeable lampA+
Energy efficiency class of the supplied lampA++, A+, A (LED)
Max. energy efficiency class of the exchangeable lampA+
Minimum energy efficiency class of the exchangeable lampA+
Energy classF
Start of phase breakNo
End of phase breakNo
Nominal current of the LED at constant current0 mA
Integrated diameter83 mm
Rated life L80/B50 at 25°C100000 h
Luminous efficacy of the lamp83 lm/W
Luminaire efficiency750 lm/W
Light emissionDirect
Glare assessment (UGR)18.6
Power factor (cos phi)0.9
Luminous flux (Lumen)999 lm
Effective luminous flux750 lm
Protection class (IP)IP54
Wall mountingNo
Number of lamps/modules1
Number of poles2
Max. number of luminaires per circuit breaker B16123
Max. number of luminaires per circuit breaker C16123
Fire protection "D"No
Accepted lamp power9 .. 9 W
System power9 W
ReflectorUltra glossy
RegulabilityNot adjustable
Light distributionSymmetrical
Wire surface2.5 mm²
Connectable conductor section2.5 mm²
Light source includedYes
Brushed surfaceYes
Nominal room temperature according to IEC 62722-2-125 .. 25 °C
Color temperature2700 K
TypeLED not interchangeable
Type of wiringSuitable for through-wiring
Color uniformity (mcAdam ellipse)SDCM3
Interface
Control via bluetoothNo
