| Manufacturer | Schneider Electric |

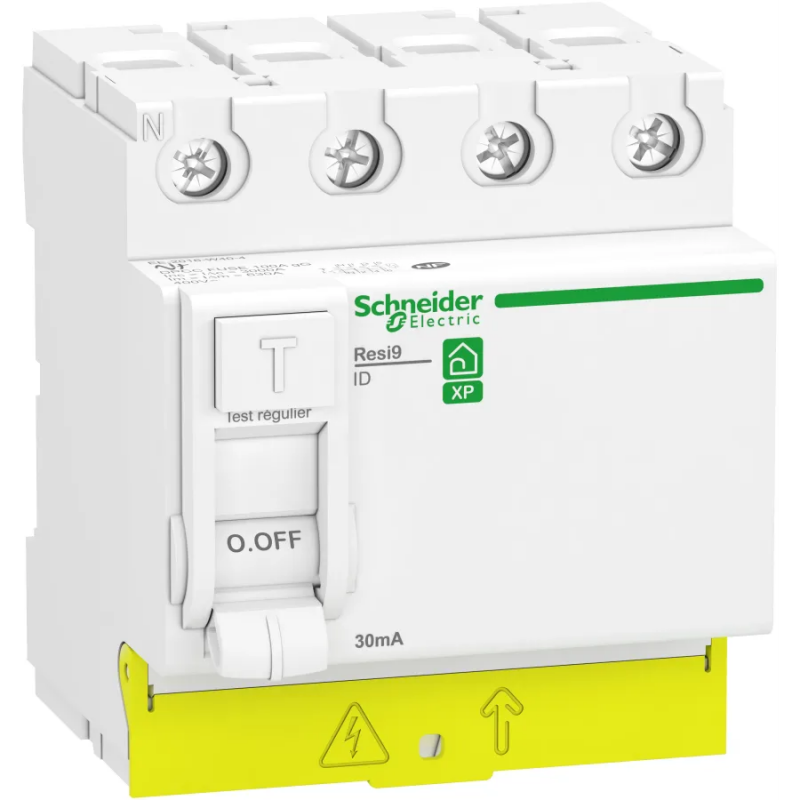

| Reference | R9PRA440 |
| EAN | 3606481176707 |
| Warranty | 2 years |
| Customs code | 85362010 |
| Product line | Resi9 |
| Short-circuit resistance (Icw) | 3 kA |
| Type of differential current | A |
| Type of voltage | AC |
| Width in number of modules | 4 |
| Embedding depth | 44 mm |
| Calibre | 40 A |
| Degree of pollution | 2 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4 |
| RAL number | 9003 |
| Section of connection cable rigid | 35,0 .. 1,0 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25,0 40,0 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 440 V |
| Shock current resistance | 3 kA |
| Type of installation | DIN rail |
Reference: A9R11280
Differential switch ilD Bi Acti9 - AC - 80A - sensitivity : 30mA
Reference: A9R79725
Acti9 iIG40K - switch. DIFF group head - 3P+N - 25A - 300mA - type AC
Reference: A9R12240
Differential switch ilD Bi Acti9 - AC - 40A - sensitivity : 100mA
Reference: A9R56225
Acti9 iIDK - switch DIFF - 2P - 25A - 500A/4,5kA - 300mA - type AC
Reference: A9R87740
Acti9 iIG40 - switch. DIFF group head - 3P+N - 40A - 30mA - type A-SI
Reference: R9ERC225
Differential switch 25A XE Resi9 - type AC - bipolar - 30mA - 230V CA - plug-in
Reference: A9Z61440
Differential switch 40A Acti9 iID - type B-SI - 4 clusters - 30mA - 400V - CA
Reference: A9Z61240
Differential switch 40A Acti9 iID - type B-SI - 2 clusters - 30mA - 230V - CA
Reference: A9Z61463
Differential switch 63A Acti9 iID - type B-SI - 4 clusters - 30mA - 400V - CA
Reference: A9Z64480
Differential switch 80A Acti9 iID - type B-SI - 4 clusters - time delay instant
