-20%

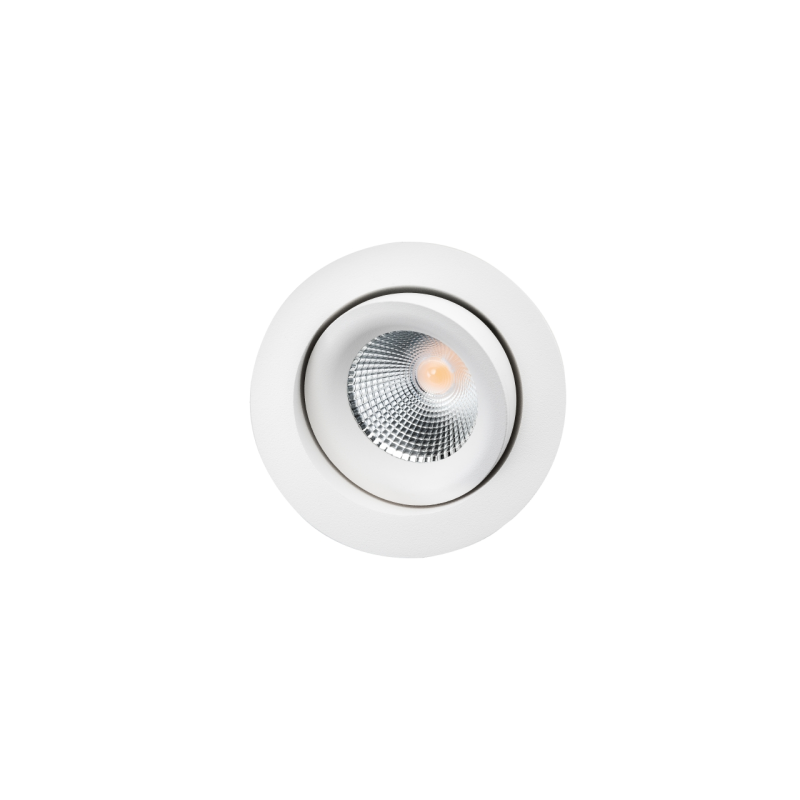

Junistar Lux Blade downlight white 560lm 3000K Ra 98 phase break

Reference 902623

EAN 7021989026235

Brand SG Lighting

Color: White, Product line: Junistar, Protection class (IP): IP44, Color rendering index (CRI): 90 .. 100, Color temperature: 3000 K

€168.80

€135.04 Save 20%

Tax included Delivery within 19 working days in Europe - Price for 1u.

Quantity

On order / 19 days

100% secure payments

Description

Description

Junistar Lux Blade downlight white 560lm 3000K Ra 98 phase break - 902623

Junistar Lux Blade downlight white 560lm 3000K Ra 98 phase break

3000K

Extensive beam 40-80°

560lm

IP44

class II

90 .. 100

main features - SG Lighting 902623

Color: White
Product line: Junistar
Protection class (IP): IP44
Color rendering index (CRI): 90 .. 100
Color temperature: 3000 K
reference: SG Lighting 902623 / EAN: 7021989026235

High Quality Product

By offering an extended warranty to 5 years, SG Lighting ensures a high level of quality of this product that will give you satisfaction for many years. Thanks to its aluminium structure this Junistar range luminaire offers you rock-solid strength and guaranteed longevity.

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	SG Lighting
Reference	902623
EAN	7021989026235
Warranty	5 years
Customs code	94051190
Product line	Junistar

Design and finish

Color	White
Case color	White
Material of the glass	Glass transparent
Material	Aluminum

Light information

Beam angle	Faisceau extensif 40-80°
Color of light	White
Color rendering index (CRI)	90 .. 100

Electrical information

Class electric	II
Nominal voltage	220...240 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	No
Suitable for surface mounting	No
Suitable for flush mounting	No
Suitable for clamp mounting	No
Suitable for bar mounting	No
Suitable for bearing/floor mounting	No
Suitable for rail mounting	No
Suitable for crossbar mounting	No

Dimensions and weight

Diameter	94 mm
Embedding diameter	83 mm
Height	54 mm
Height/depth	50 mm
Installation height/depth	48 mm
Embedding length	83 mm

Technical specifications

Suitable for pendant lights	No
Bulb(s) included(s)	Yes
Device	LED driver constant current
Equipment supplied	Yes
With sensor of light	No
Energy efficiency class of the supplied exchangeable lamp	A++
Energy efficiency class of the supplied lamp	A++, A+, A (LED)
Max. energy efficiency class of the exchangeable lamp	A++
Minimum energy efficiency class of the exchangeable lamp	A++
Start of phase break	No
End of phase break	Yes
Nominal current of the LED at constant current	0..0 mA
Dimensions	Ø94 x 54 mm ( Ø x H )
Rated life L90/B10 at 25°C	50000 h
Luminaire efficiency	68 lm/W
Light emission	Direct
Power factor (cos phi)	0.9
Luminous flux (Lumen)	560 lm
Photobiological risk group according to EN 62471	GR1
Protection class (IP)	IP44
Assembly	Built-in
Wall mounting	No
Number of lamps/modules	1
Number of poles	2
Fire protection "D"	No
Accepted lamp power	7 .. 7 W
System power	8 W
Reflector	Ultra glossy
Regulability	Orientable
Light distribution	Symmetrical
Wire surface	1 mm²
Connectable conductor section	2.5 mm²
Light source included	Yes
Light source included	Yes
Brushed surface	No
Nominal room temperature according to IEC 62722-2-1	-40 .. 105 °C
Color temperature	3000 K
Type	LED not interchangeable
Type of wiring	Suitable for through-wiring
Color uniformity (mcAdam ellipse)	SDCM1
